![](http://www.designboom.com/cms/images/erica/-----athletics/track01.jpg)

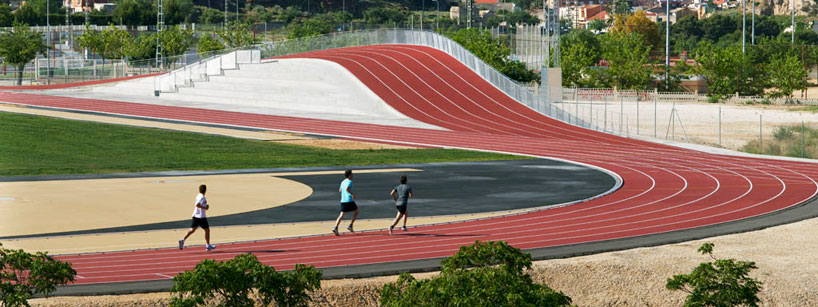

'3D athletics track' by subarquitectura in elda, alicante, spain
all images courtesy subarquitectura
photographer: david frutos ruiz
spanish practice subarquitectura has completed '3D athletics track', a multifunctional course
in elda, alicante, spain. taking the traditionally flat design to - literally - a whole new level,
the 400 m track is manipulated to incorporate a changing room into the fabric of the project,
resulting in a playful and hilly addition to the circuit.
![](http://www.designboom.com/cms/images/erica/-----athletics/track02.jpg)

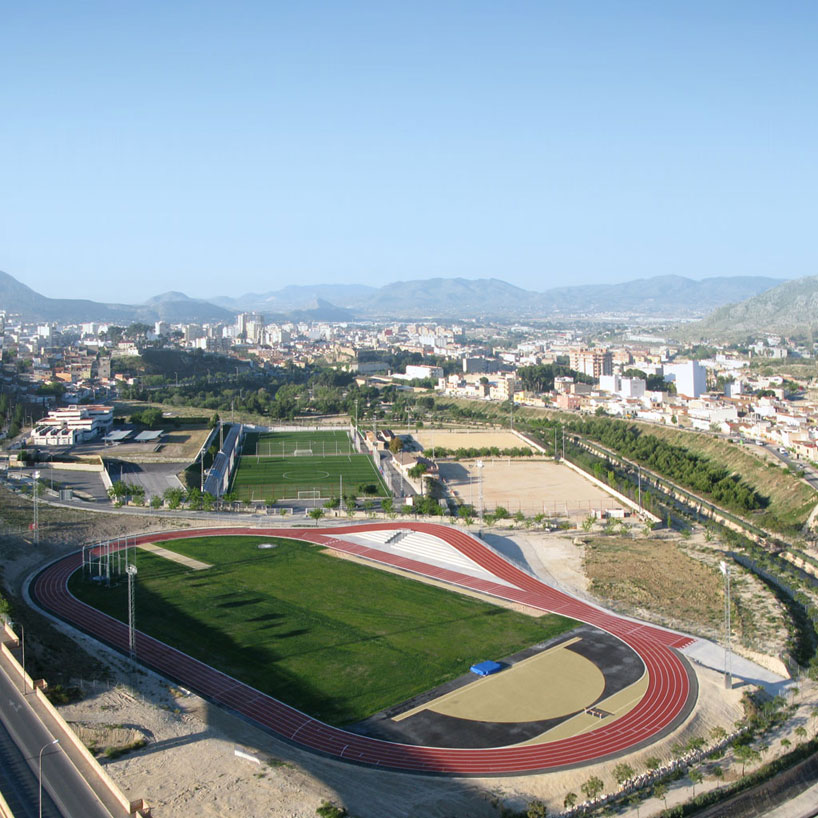

aerial view
exploring the common style that has become a standard for running circuits around
the world, the design adds an extended lane that takes off on a tangent from one
of the long sides. this new arm is then raised vertically to create a a slight bluff that
wraps around the spectators' zone. the raised track also covers a small sheltered
changing facility, which becomes an intuitively integrated element in the project.
![](http://www.designboom.com/cms/images/erica/-----athletics/track03.jpg)

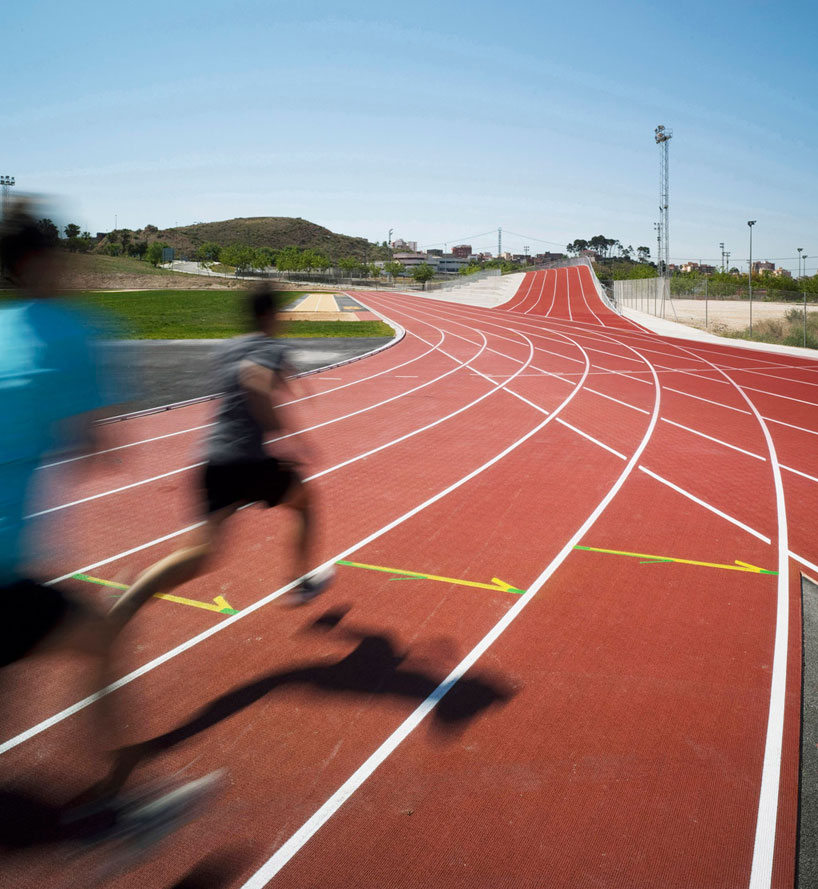

view towards the spectators zone
![](http://www.designboom.com/cms/images/erica/-----athletics/track04.jpg)
elevation from within the circuit
![](http://www.designboom.com/cms/images/erica/-----athletics/track05.jpg)

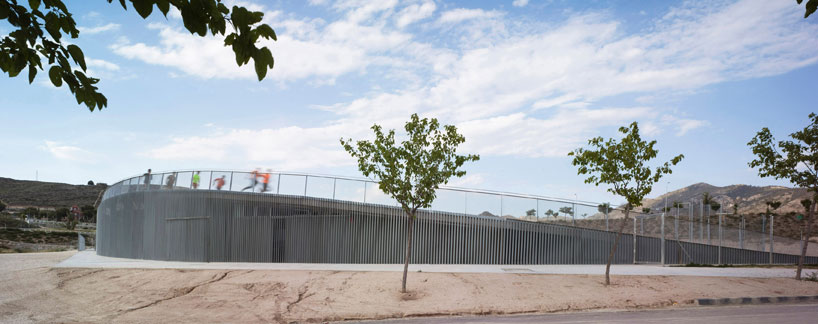

view of the raised track
![](http://www.designboom.com/cms/images/erica/-----athletics/track06.jpg)

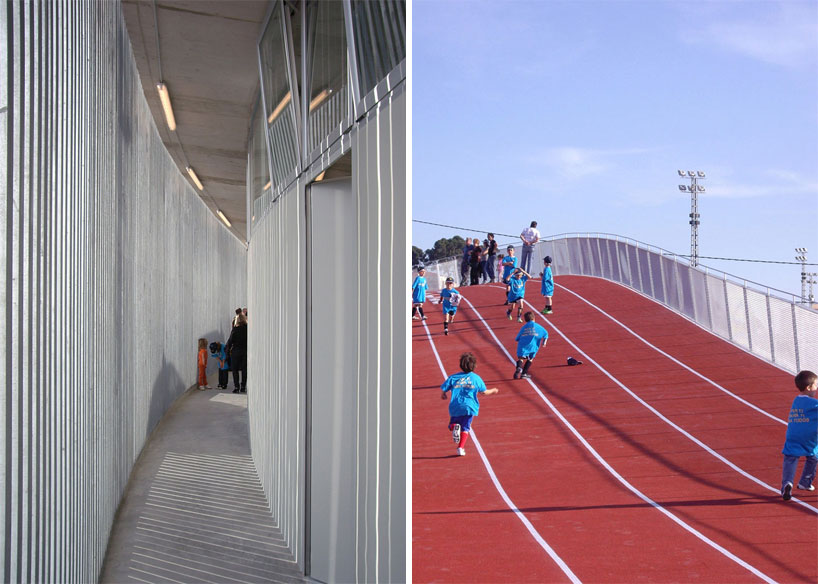

(left) inside the sheltered facility
(right) raised track
![](http://www.designboom.com/cms/images/erica/-----athletics/track07.jpg)
spectators stand
![](http://www.designboom.com/cms/images/erica/-----athletics/track08.jpg)
![](http://www.designboom.com/cms/images/erica/-----athletics/track09.jpg)
![](http://www.designboom.com/cms/images/erica/-----athletics/track10.jpg)

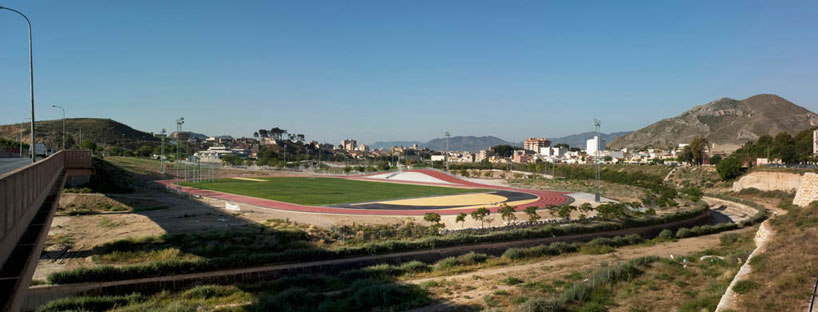

in context
![](http://www.designboom.com/cms/images/erica/-----athletics/track11.gif)

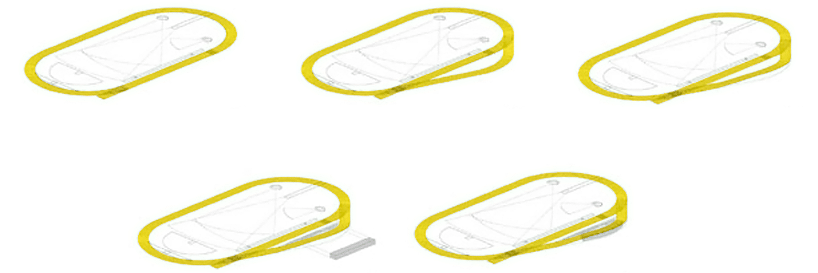

schematic diagram
(top - left to right) standard track, extended track, three-dimensional
(bottom - left to right) program, inserting of program into track
![](http://www.designboom.com/cms/images/erica/-----athletics/track12.gif)

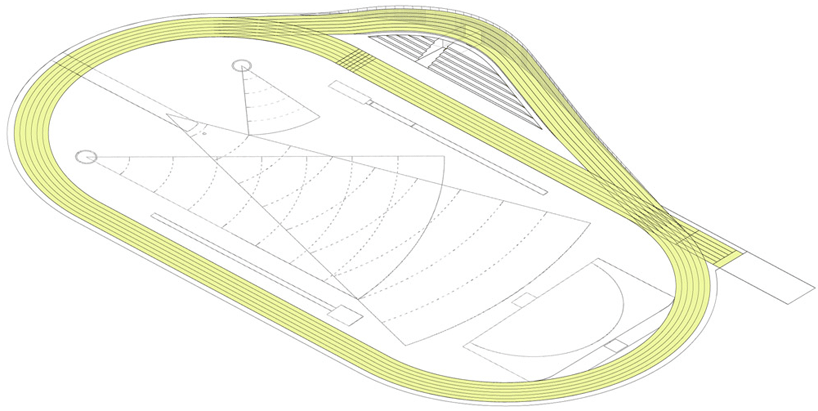

isometric
![](http://www.designboom.com/cms/images/erica/-----athletics/track13.gif)

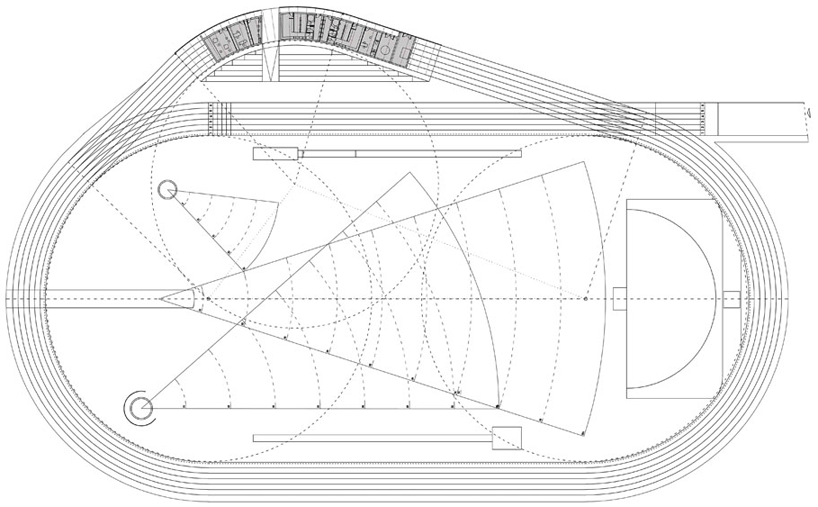

plan
![](http://www.designboom.com/cms/images/erica/-----athletics/track14.gif)
elevation from inside the track
![](http://www.designboom.com/cms/images/erica/-----athletics/track15.gif)

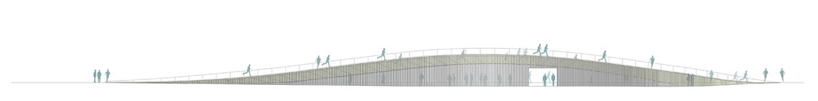

elevation from outside the track
![](http://www.designboom.com/cms/images/erica/-----athletics/track16.gif)
elevations of raised track
![](http://www.designboom.com/cms/images/erica/-----athletics/track17.gif)

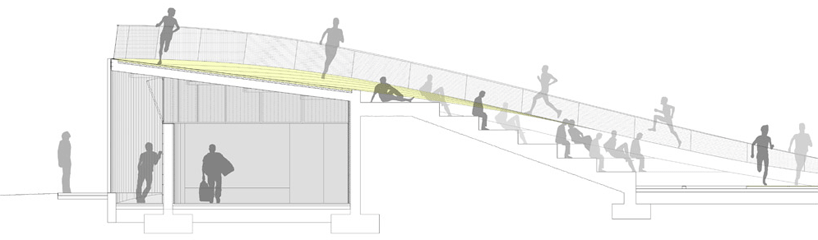

section through spectators' stand
![](http://www.designboom.com/cms/images/erica/-----athletics/track18.gif)

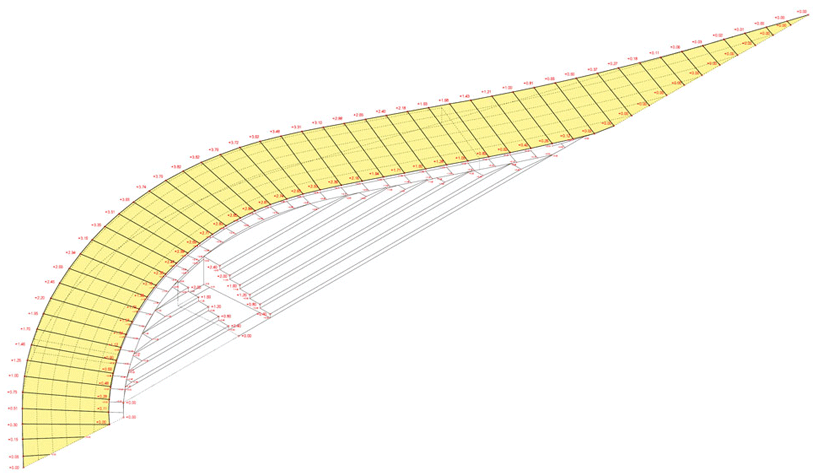

isometric of raised track
project info:
architects: andrés silanes, fernando valderrama, carlos bañón
promotors: ayuntamiento de elda
constructor: CYES
