choi ropiha fighera: ballast point park
جمعه, ۱۸ شهریور ۱۳۹۰، ۱۲:۰۰ ق.ظ
دیتیلی ساده نوآورانه و خوش ساخت برای سایه انداز در فضاهای باز و نیمه باز معماری یا حتی سایهانداز بالای جدارهها و پنجرهها. در این طراحی به راحتی نواری پلاستیکی با تابیدن و چرخیدن حول دو محور در طرفین سطح سایه انداز رو ایجاد میکنه.
'ballast point park' by choi ropiha fighera located in balmain, new south wales, australia
images © brett boardman
australia-based practice choi ropiha fighera has completed 'ballast point park' located in balmain, new south wales, australia. overlooking the scenic sydney harbor, the park is perched high upon a headland projecting from the prominent cliffs. early settlers originally used this area to quarry rock used for ballast. to maintain a historically and aesthetic connection with the site and incorporate sustainable materials, ballast was introduced within steel caging for perimeter walls and as a gravel for ground surfacing.

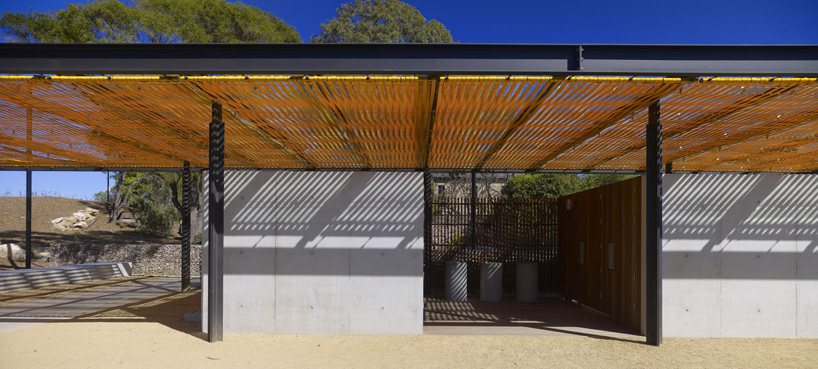

entrance to the rest area
the pavilion's minimal steel framing responds to the area's industrial aesthetic while leaving a framework for the shading elements. bright yellow seat belt webbing is woven around metal rods creating a delicate pattern in the roof plane. the sun's rays are filtered through the strips producing a dappled lighting effect on the ground. this effect is complimented by thin vertical hardwood slats which clad the entrances to the public restrooms. low profile walls lead visitors towards a stairway which transitions down the steep rock face and towards the waterfront.
entry to public restrooms

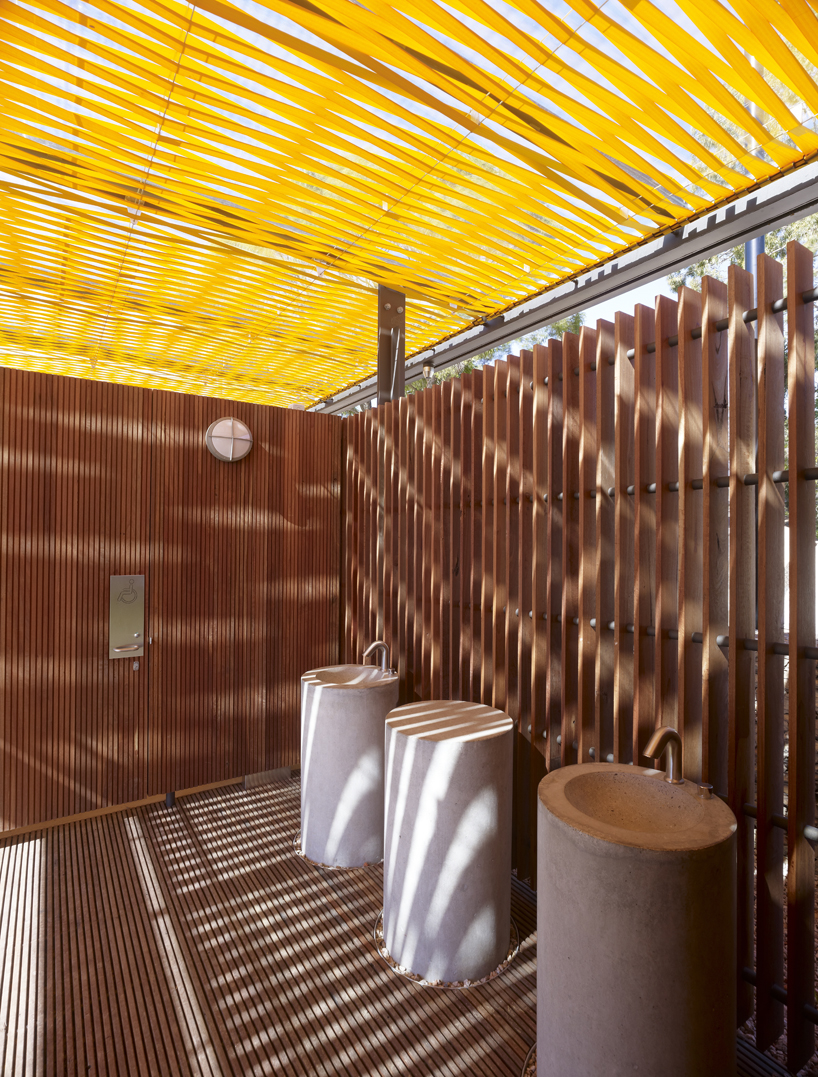

poured in place concrete sink basins

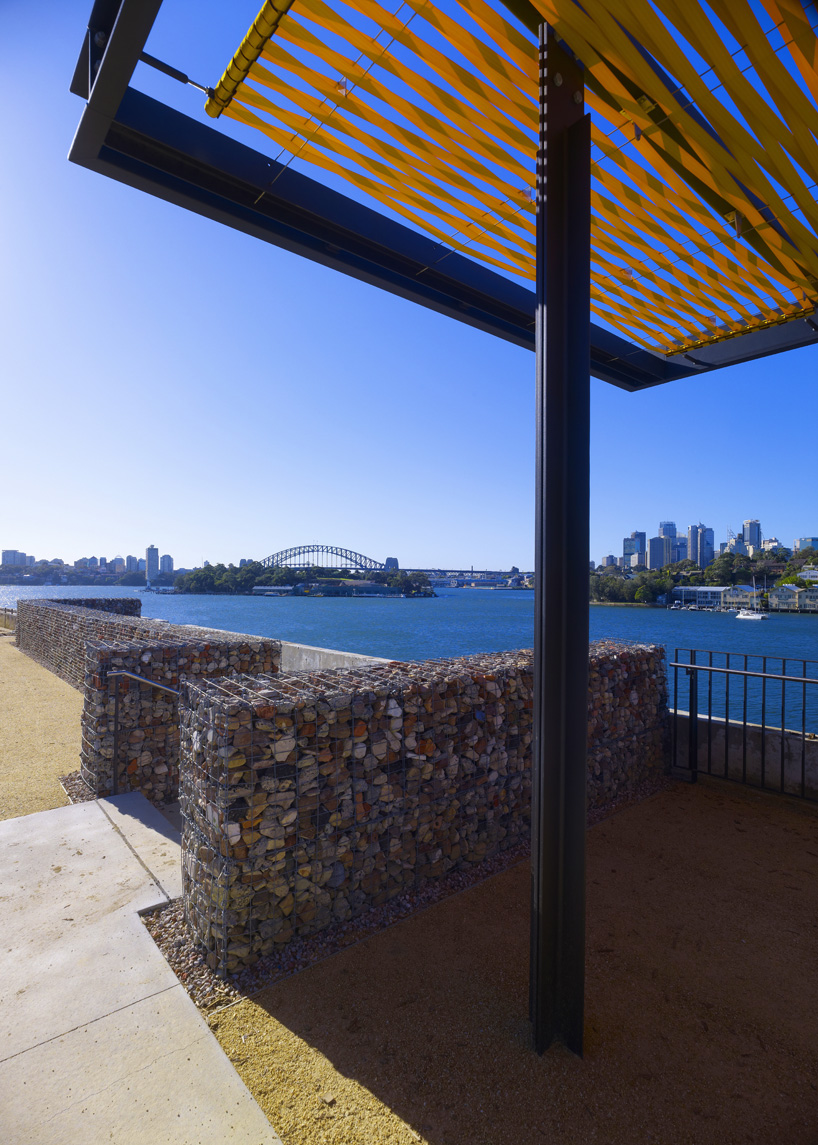

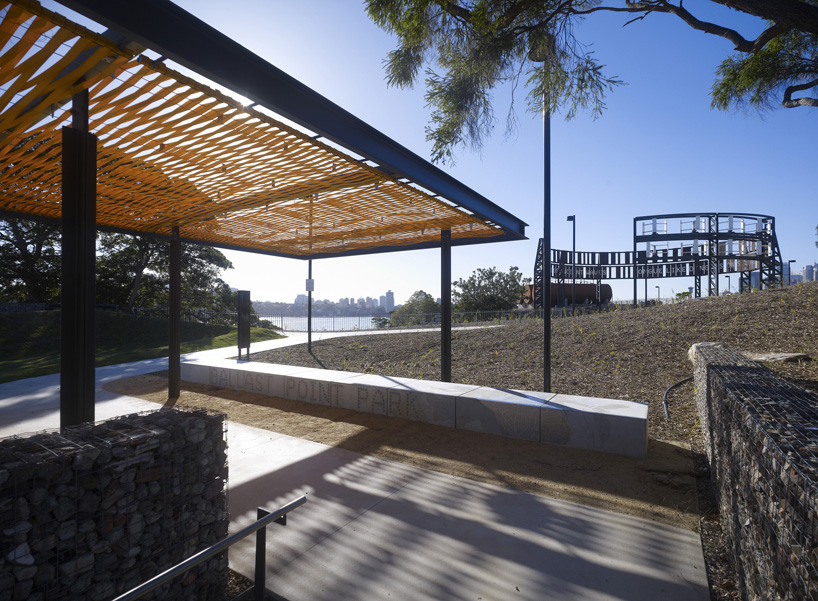

view of sydney harbor from rest area

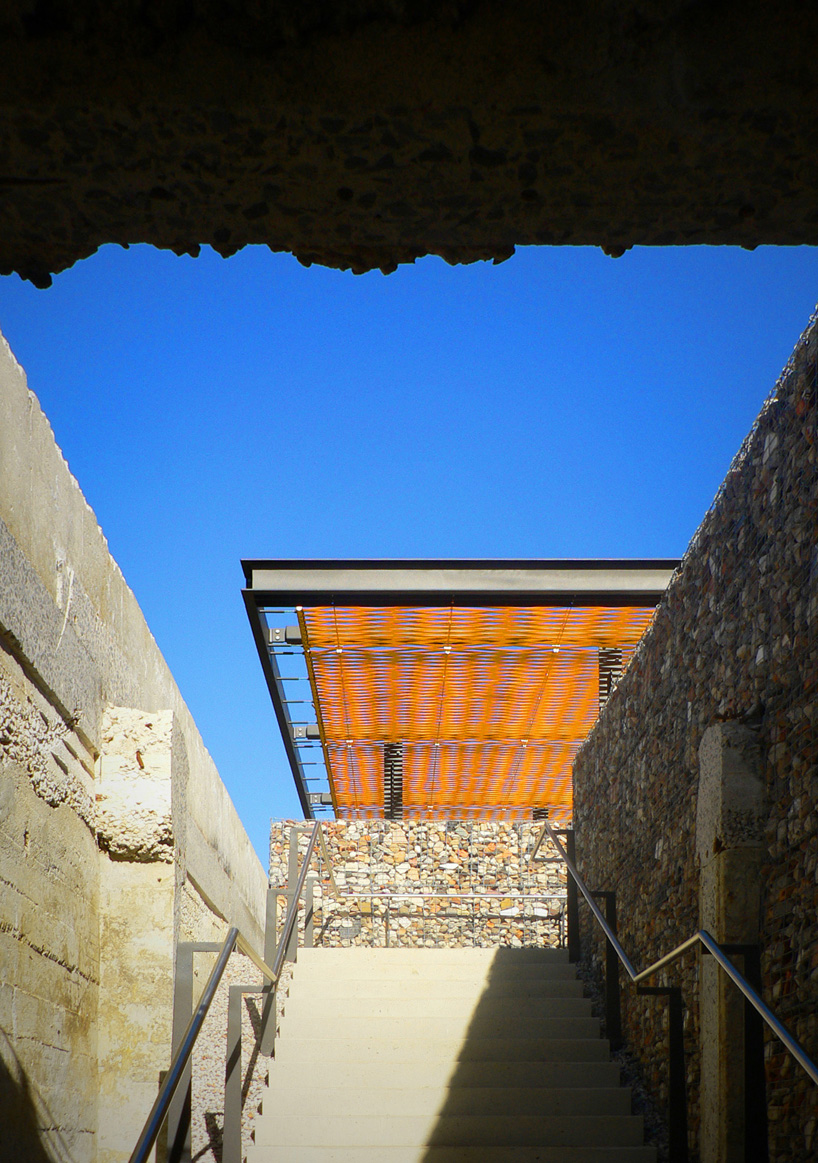

stairs connecting rest area to waterfront

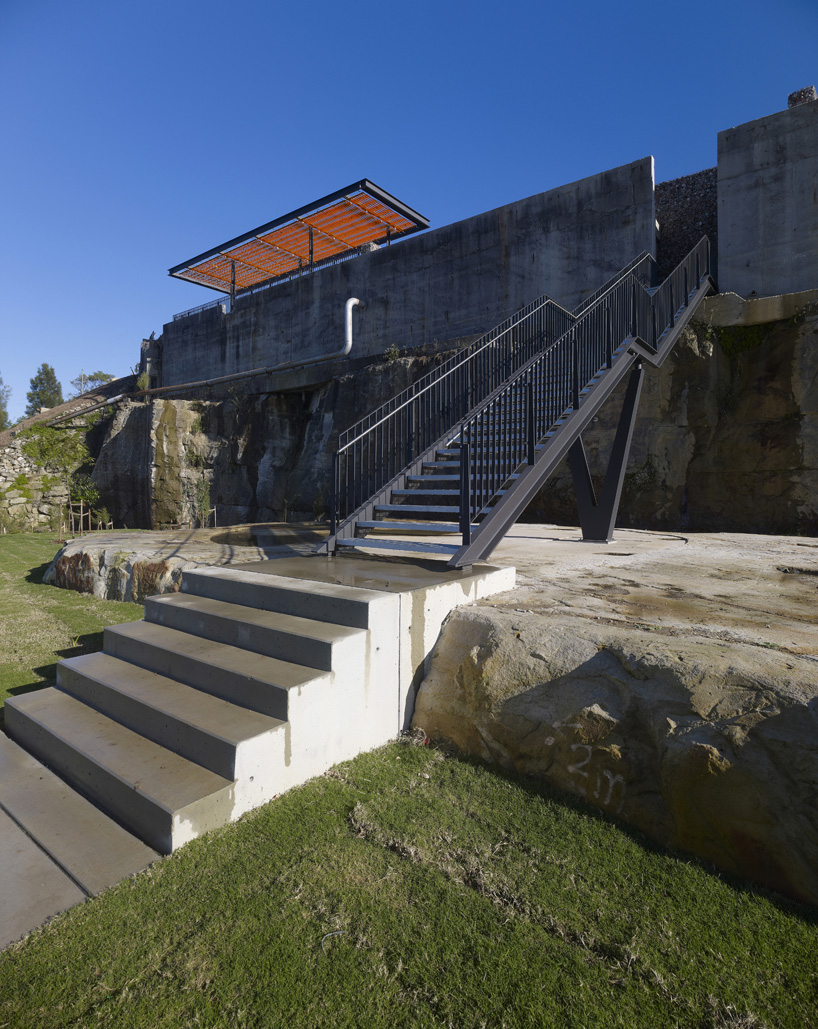

stairway entrance from waterfront

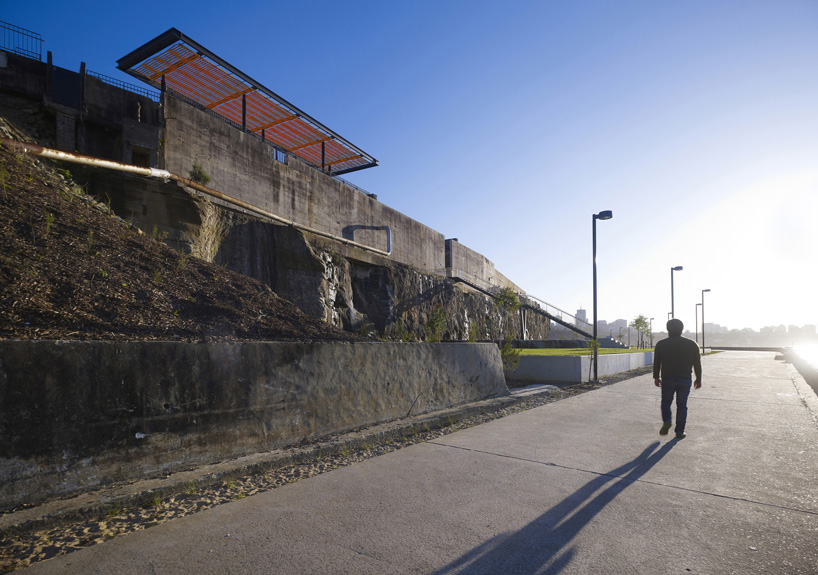

view of rest area from waterfront

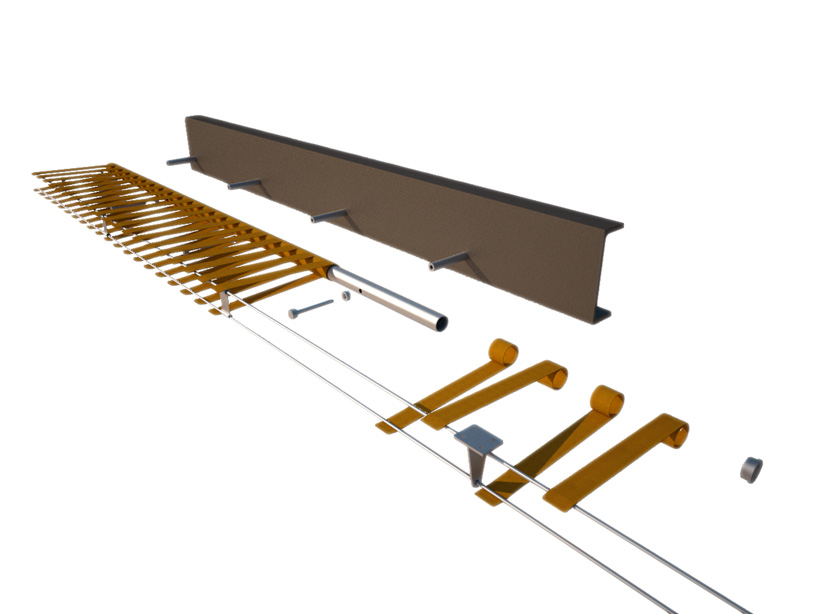

detail of roof shade
